Description

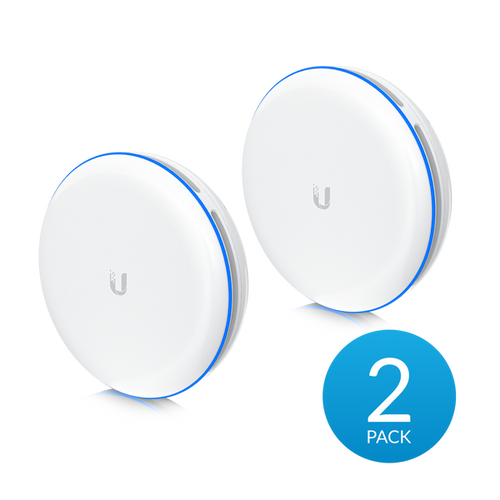

60 GHz, point-to-point (PtP) link with an integrated, 5 GHz radio that provides reliable backup redundancy and high-throughput connectivity at a range of up to 500 m. 2-Pack US Version
The UniFi® Building-to-Building Bridge XG (UBB XG) is a 60 GHz, PtP link that creates short-range, high-throughput connections while also sustaining blazing-fast speed across distances up to 500 m. Designed for plug-and-play simplicity, the UBB XG's bridging units come pre-paired out of the box and both feature calibration LEDs that help you easily adjust their angle and postion to optimize signal transmission. Seamlessly integrated with the UniFi Network application, the UBB XG can be set up in minutes and managed from a central, intuitive interface, making network bridging easier than ever!
UBB-XG-US Features
- (1) GbE RJ45 port
- (1) 10G SFP+ port
- 5 GHz radio for backup redundancy
- Operational range of up to 500 meters
- Pre-paired bridging units
- Calibration LEDs designed to ensure an easy alignment process
- Compact design
- IPX6-rated, weatherproof casing
- Terragraph-certified
- Included mounting and installation kit [(2) precision mounts, (2) pole brackets, (2) screw kits, (2) PoE adapters, and (2) power cords]
Managed with the UniFi Network application: Version 6.3 or higher.
| UBB-XG-US Specifications | |
|---|---|
| Dimensions | Ø192 x 59 mm (Ø7.56 x 2.32") |
| Weight | Without mount: 1.7 kg (3.75 lb) With mount: 2.85 kg (6.28 lb) |
| Enclosure materials | Aluminum alloy, UV resistant polycarbonate |
| Mount material | Stainless steel (SUS304) |
| Mounting | 60G Precision Alignment Pole Mount (included) Pole compatibility: Ø25.4-63.5 mm (Ø1-2.5") |
| Weatherproofing | IPX6 |
| Hardware | |
|---|---|
| Processor | Quad-Core ARM® Cortex® A72 at 1.6 GHz |
| Memory | 2 GB DDR4 |
| Management interface | Ethernet Bluetooth |
| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Button | Factory reset |
| LED | R/G/B |
| Power Method | PoE++, passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) |
| Power Supply | UniFi PoE switch 48V, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range | 48VDC ± 10% |
| Max. power consumption | 31.2W |
| Maximum throughput 5 GHz 60 GHz |
866.6 Mbps 3.8 Gbps |
| Maximum range | 400+ m (1312+ ft) |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 - 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
|---|---|
| Wi-Fi standards | 802.11ad/ay 802.11ac (Wi-Fi 5) |
| Wireless security | WPA2 AES (always on) |
| Operating modes | PtP |
| VLAN | Management VLAN only |
| RF | |
|---|---|
| Operating Frequency* | 57 to 66 GHz * Depends on regulatory region. |
| Channel bandwidth | 2160 MHz |
| Operating channels | 58320, 60480, 62640, 64800 MHz |
| Back-Up RF | |
|---|---|
| Operating frequency* US/CA |
U-NII-1 5150 - 5250 MHz U-NII-3 5725 - 5850 MHz |
| Worldwide | 5150 - 5725 MHz * Depends on regulatory region. |
| Channel bandwidth | 20/40/80 MHz |
